bourns, inc. has been leading the electronics industry in the design, manufacture and sale of electronic components and integrated solutions since 1947.

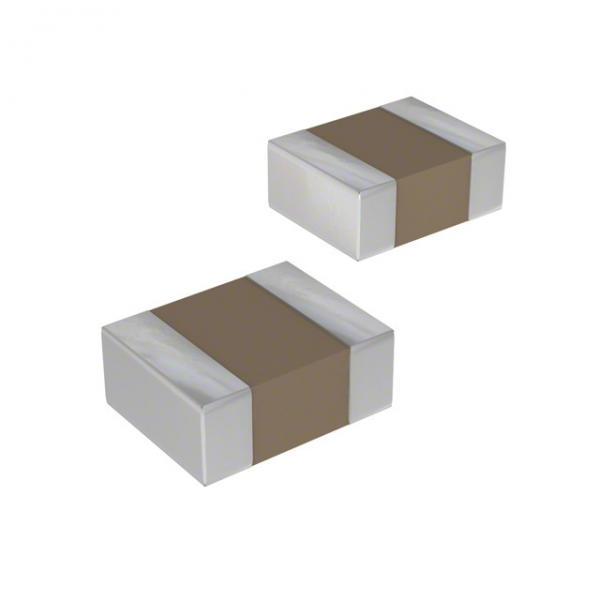

| Part Number | CF322513-R56K |
|---|---|
| Part Status | Obsolete |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 560nH |
| Tolerance | ±10% |
| Current Rating | 450mA |
| Current - Saturation | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 550 mOhm Max |
| Q @ Freq | 30 @ 25.2MHz |
| Frequency - Self Resonant | 180MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Frequency - Test | 25.2MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
