hotenda.cn is an authorized distributor of eaton products. eaton is a manufacturer of passive components for circuit protection.

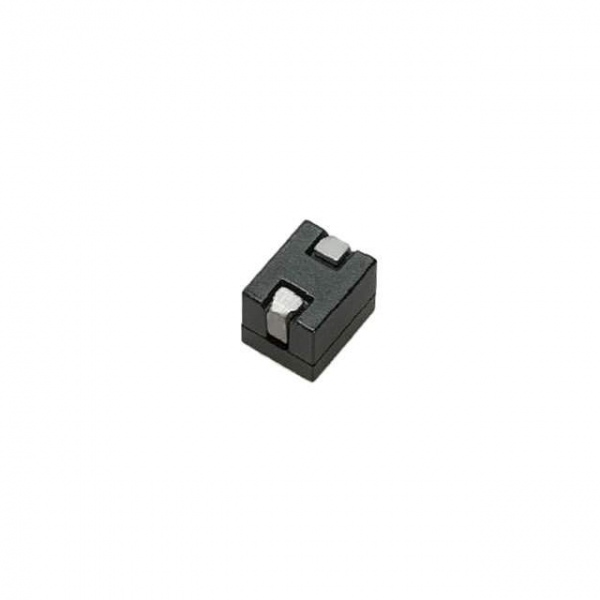

| Part Number | FP1008-180-R |
|---|---|
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 180nH |
| Tolerance | ±10% |
| Current Rating | 63A |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.17 mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.425" L x 0.315" W (10.80mm x 8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
