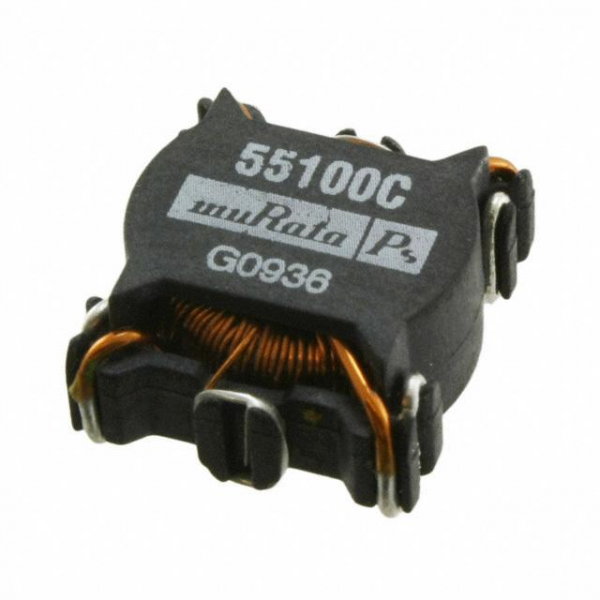

Murata Power Solutions Inc. 55100C-R

Part Number: 55100C-R
Manufacturer: Murata Power Solutions Inc.
Description: XFRMR CURR SENSE 15A 1:1:100 SMD
Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Family: Current Sense Transformers

Murata Power Solutions Inc

murata power solutions designs and manufactures dc/dc converters, ac/dc power supplies, magnetics, data acquisition devices and digital panel meters, and offers these products in custom, standard and modified-standard variations.

Product Parameter

Part Number	55100C-R
Part Status	Active
Frequency Range	50kHz ~ 500kHz
Type	Invasive
Current Rating	-
Inductance	14.8mH
E.T.	-
Turns Ratio - Primary:Secondary	1:1:100
Current Ratio	-
DC Resistance (DCR)	2.3 mOhm Primary, 850 mOhm Secondary
Ratings	-
Mounting Type	Surface Mount
Size / Dimension	0.496" L x 0.575" W (12.60mm x 14.60mm)
Height - Seated (Max)	0.280" (7.10mm)
Termination Style	-
