jae electronics is a top 10 global interconnect supplier and a recognized technology leader in fine pitch.

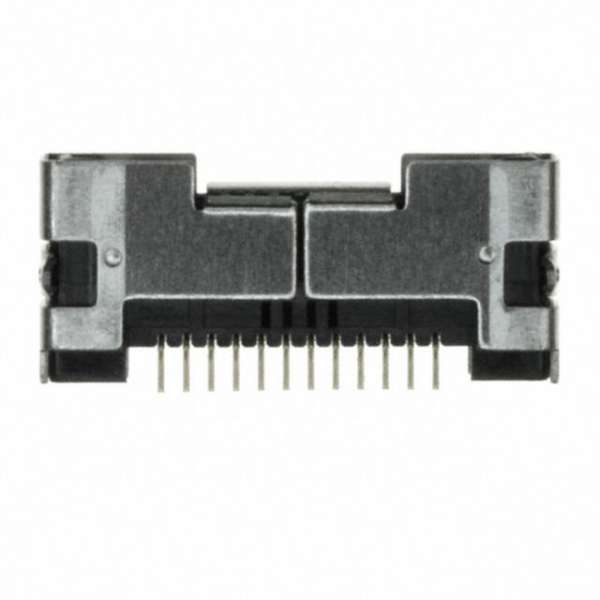

| Part Number | RL01-R12PE |
|---|---|
| Part Status | Obsolete |
| Connector Type | Receptacle |
| Contact Type | Center Strip Contact |
| Style | Board to Cable/Wire |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.031" (0.80mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | - |
| Insulation Height | 0.114" (2.90mm) |
| Contact Length - Post | - |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide, Shielded |
