rohm was established in kyoto, japan, in 1958. rohm designs and manufactures semiconductors, integrated circuits and other electronic components. these components find a home in the dynamic and ever-growing wireless, computer, automotive and consumer electronics markets.

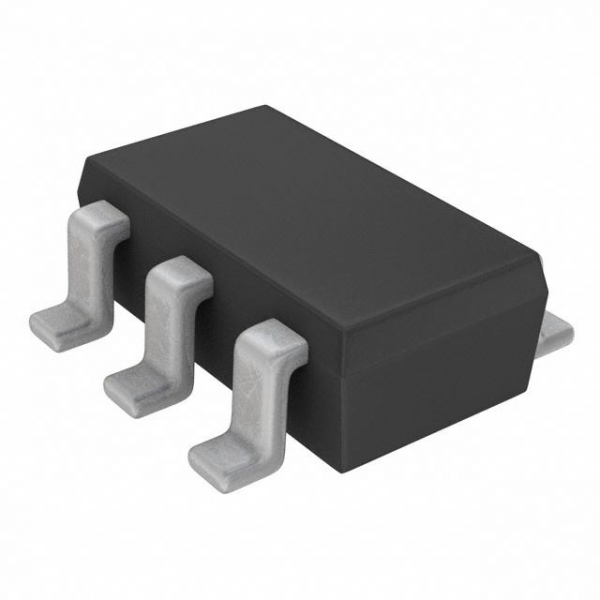

| Part Number | RTQ035P02TR |
|---|---|
| Part Status | Not For New Designs |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) |
| Drive Voltage (Max Rds On,Min Rds On) | 2.5V, 4.5V |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 10.5nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1200pF @ 10V |
| Vgs (Max) | ±12V |
| FET Feature | - |
| Power Dissipation (Max) | 1.25W (Ta) |
| Rds On (Max) @ Id, Vgs | 65 mOhm @ 3.5A, 4.5V |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TSMT6 (SC-95) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
