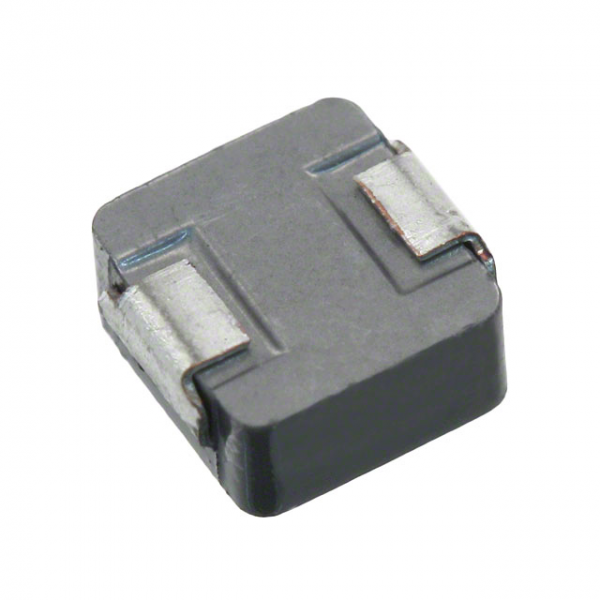

| Part Number | PCMC042T-R22MN |
|---|---|
| Part Status | Obsolete |
| Type | - |
| Material - Core | - |
| Inductance | 220nH |
| Tolerance | ±20% |
| Current Rating | 9A |
| Current - Saturation | 17A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 8 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
